Sadiki Metals, based in Kinshasa, Congo, is a reliable manufacturer and supplier of Aluminium 1060 Bars and Rods, known for their high purity, corrosion resistance, and lightweight properties. With a strong focus on precision engineering and rigorous quality control, Sadiki Metals guarantees that every product adheres to international standards. Aluminium 1060, recognized as a commercially pure grade, boasts excellent corrosion resistance, high thermal and electrical conductivity, and remarkable workability. These bars and rods find extensive use in various industries, including electrical, construction, automotive, and marine, providing durable and versatile materials that excel in both structural and functional applications where lightweight performance and reliability are crucial.
Sadiki Metals’ Aluminium 1060 Bars and Rods consist of at least 99.6% pure aluminium, along with small amounts of iron, silicon, copper, manganese, and zinc. This specific composition ensures outstanding corrosion resistance, high ductility, and excellent formability. The mechanical properties feature a tensile strength ranging from 70 to 110 MPa, yield strength between 35 and 55 MPa, and elongation of 20 to 30%. With a low density of 2.71 g/cm³ and impressive thermal and electrical conductivity at around 61% IACS, Aluminium 1060 bars and rods deliver lightweight performance, durability, and stability under moderate mechanical loads and during fabrication processes.
| Aluminium Alloy | ASTM B211, B211, B565, B316 5082, AMS 4121 |
| Standard | ASTM, ASME, AMS, GB/T, JIS |
| Aluminium Round Bar Temper | O, H12, H14, H16, H18, H22, H24, H26, H32, H112 |

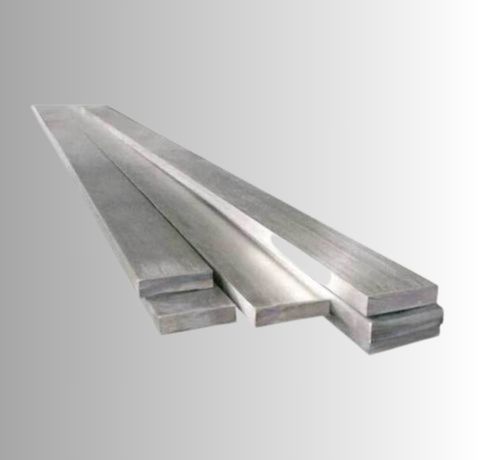

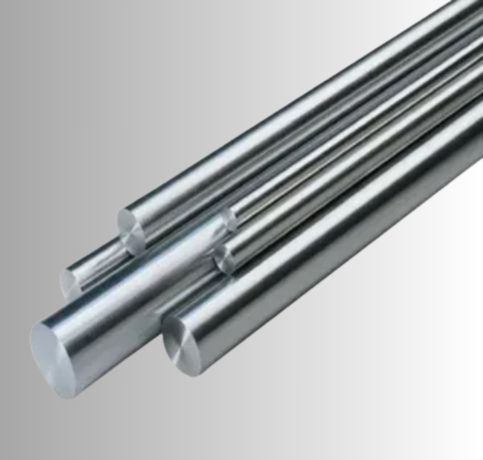

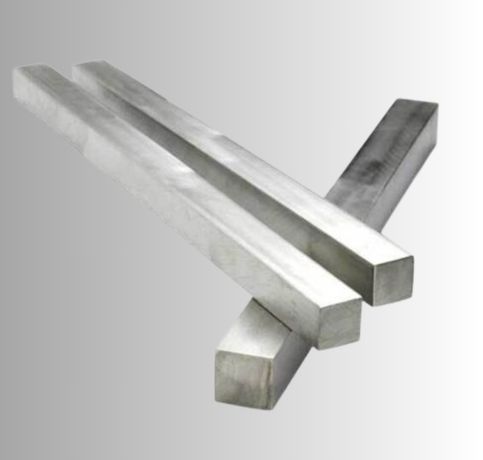

| Aluminium Bar Form | Aluminium Round, Hex, Flat, Half Round, Oval, Rectangular in Black & Bright Finish |
| Aluminium Round Bar Diameter | 0.1-600mm,etc |
| Aluminium Hexagonal Bar | 0.1-600mm,etc |
| Aluminium Angle Bar Size | 0.5mm*40mm*40mm-20mm*400mm*400mm |
| Aluminium Flat Bar Thickness | 0.1-600mm,etc |
| Aluminium Flat Bar Size | 1-2500mm, etc |
| Aluminium Round Bar Length | 1-12m, Random, Fix & Cut Length or as per clients’ requirement |
| Aluminium Bar | Bright, Polish & Black |
| Aluminium 1060 | Fe | Si | Mg | Mn | Cu | Zn | Ti | Al |
| 0.15 – 0.20 | 0.10 – 0.15 | 0.01 – 0.03 | 0.01 – 0.03 | 0.01 – 0.05 | 0.01 – 0.03 | 0.020 – 0.030 | 99.60 |
| Mechanical Properties – Al 1060 | |||||||||||||||||||
| Alloy | Temper | UTS(Mpa) | % Elongation | ||||||||||||||||
| Min | Max | 0.5 mm -0.8 mm | 0.81 mm – 1.30 mm | 1.30 mm – above | |||||||||||||||
| 1060 | O | 55 | 75 | 25 | 25 | 30 | |||||||||||||
| H12 | 75 | 110 | 6 | 6 | 7 | ||||||||||||||
| H14 | 90 | 120 | 5 | 5 | 6 | ||||||||||||||
| H16 | 95 | 130 | 4 | 4 | 4 | ||||||||||||||
| H18 | 130 | — | 3 | 3 | 3 | ||||||||||||||
| STANDARD | UNS | DIN |
| Aluminium 1060 | A91060 | – |
| Size in mm | Average Weight | |
| KG/MTR | KG/FT | |
| 10 | 0.62 | 0.18 |
| 12 | 0.90 | 0.30 |
| 14 | 1.20 | 0.40 |
| 16 | 1.60 | 0.50 |
| 18 | 2.00 | 0.60 |
| 20 | 2.50 | 0.80 |
| 22 | 3.00 | 0.90 |
| 24 | 3.56 | 1.08 |
| 25 | 3.90 | 1.20 |
| 28 | 4.80 | 1.50 |
| 30 | 5.55 | 1.69 |
| 32 | 6.30 | 1.90 |
| 34 | 7.14 | 2.18 |
| 36 | 8.00 | 2.44 |
| 40 | 9.90 | 3.00 |
| 45 | 12.49 | 3.81 |
| 50 | 15.40 | 4.70 |
| 56 | 19.34 | 5.89 |
| 60 | 22.20 | 6.80 |
| 63 | 24.47 | 7.46 |
| 63.5 | 24.86 | 7.58 |
| 65 | 26.05 | 7.94 |
| 70 | 30.20 | 9.20 |
| 73 | 32.86 | 10.00 |
| 75 | 34.72 | 10.58 |
| 78 | 37.51 | 11.43 |
| 80 | 39.50 | 12.00 |
| 83 | 42.47 | 12.95 |
| 85 | 44.55 | 13.58 |
| 90 | 50.00 | 15.20 |
| 92 | 52.19 | 15.91 |
| 93 | 53.39 | 16.27 |
| 95 | 55.65 | 16.95 |
| 100 | 61.66 | 18.79 |
| 105 | 67.98 | 20.72 |
| 110 | 74.60 | 22.74 |
| 115 | 81.64 | 24.88 |
| 125 | 96.34 | 29.36 |
Yes, Aluminium 1060 bars are corrosion-resistant. Due to its high purity, this alloy naturally forms a protective oxide layer on its surface, which helps resist corrosion from moisture and environmental factors.
Yes, Aluminium 1060 rods can be customized in size and length. Manufacturers typically offer customization to meet specific requirements for various industrial applications, ensuring precise dimensions and optimal performance.
Yes, Aluminium 1060 bars can be recycled after use. Aluminium is highly recyclable without losing its properties, making it an eco-friendly material that can be reused multiple times in various applications.
Aluminium 1060 Bars and Rods from Sadiki Metals are extensively utilized in industries that demand lightweight, corrosion-resistant, and easily fabricated materials. In electrical applications, they serve as excellent choices for busbars, connectors, and conductors due to their superior electrical conductivity. The construction industry employs them for roofing, cladding, and decorative panels. In the automotive and marine sectors, they are used for structural components, fuel tanks, and piping systems. Additionally, they are well-suited for machinery applications, showcasing their versatility and reliability across various fields.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
