Nestled in the heart of Kinshasa, Sadiki Metals stands as a trusted local source for industrial strength, specializing in the production of premium Hastelloy forgings. We understand the demanding environments faced by Congolese industry, which is why we focus on creating components that offer exceptional resilience. Our commitment is to provide our partners with forged solutions that are not only robust but also precisely crafted to meet the unique challenges of your projects, ensuring reliability where it matters most.
These forgings are defined by their advanced nickel-chromium-molybdenum composition, a formula that grants them a remarkable resistance to pitting and cracking, especially in the presence of chlorides. This translates into outstanding tensile strength and toughness, even when exposed to extreme temperatures and high-stress conditions. The forging process itself further enhances these properties, creating a uniform, dense microstructure that guarantees integrity and long-lasting performance in the most aggressive settings.
Specifications ASTM B564 / ASME SB564
Flat bar blocks up to 27″ width and 15,000 lbs.
Cylinders and sleeves up to 50″ maximum O.D. and 65″ maximum length
Discs and hubs up to 50″ diameter and 20,000 lbs.
Rolled, hand forged or mandrel forged rings up to 84″ maximum O.D. and 40″ maximum length
Rounds, shafts and step shafts up to 144″ maximum length and 20,000 lbs.
Grades Hastelloy C22, Hastelloy C276
| Grade | C | Mn | Si | S | Co | Ni | Cr | Fe | Mo | P |
| C 276 | 0.010 max | 1.00 max | 0.08 max | 0.03 max | 2.50 max | 50.99 min* | 14.50 – 16.50 | 4.00 – 7.00 | 15.00 – 17.00 | 0.04 max |
| C 22 | 0.010 max | 0.50 max | 0.08 max | 0.02 max | 2.50 max | 50.015 min* | 20.00 – 22.50 | 2.00 – 6.00 | 12.50 – 14.50 | 0.02 max |
| B2 | 0.02 max | 1.0 max | 0.1 max | 0.03 max | 1.0 max | Bal | 1.0 max | 2.0 max | 26 – 30 | 0.04 max |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Alloy C276 | 8.89 g/cm3 | 1370 °C (2500 °F) | Psi – 1,15,000 , MPa – 790 | Psi – 52,000 , MPa – 355 | 40 % |
| Alloy C22 | 8.69 g/cm3 | 1399 °C (2550 °F) | Psi – 1,00,000 , MPa – 690 | Psi – 45000 , MPa – 310 | 45 % |
| Alloy B2 | 9.2 g/cm3 | 1370 °C (2500 ºF ) | Psi – 1,10,000 , MPa – 760 | Psi – 51000 , MPa – 350 | 40 % |
To improve the surface finish of Hastelloy forgings, use techniques like polishing, grinding, or shot peening. Additionally, chemical or electrochemical cleaning can remove surface contaminants and enhance smoothness.

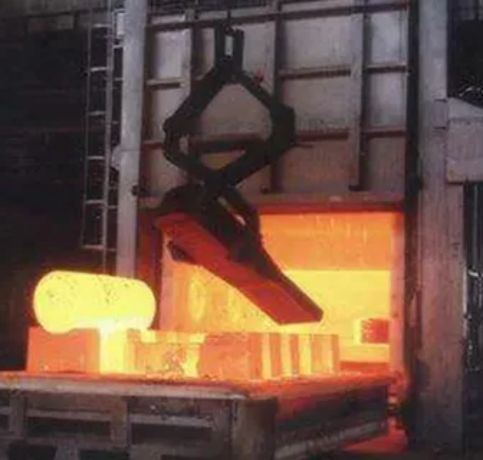

The most suitable forging techniques for Hastelloy include open-die forging and closed-die forging, which ensure optimal material flow and minimize defects. These methods provide the necessary strength and precision for high-performance applications.
To determine if Hastelloy forgings meet your needs, evaluate their chemical composition, mechanical properties, and corrosion resistance in your specific operating conditions. Conduct material testing or consult with suppliers for tailored solutions based on your application requirements.
The true value of our Hastelloy forgings is realized in the toughest applications, such as within chemical processing plants where they handle acidic mixtures, or in pollution control systems that scrub harsh emissions. They are indispensable in the oil and gas sector for components exposed to sour service, and are equally vital in pharmaceutical and power generation facilities. Essentially, wherever corrosion and heat threaten to compromise equipment, our forgings provide a dependable barrier, ensuring operational continuity and safety.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Sadiki Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Kinshasa, Congo
