Inconel Flat Bars

Located in the heart of Kinshasa, Congo, Sadiki Metals has built its reputation on a foundation of resilience and reliability, much like the advanced materials we supply. We take pride in being your trusted local source for the Inconel flat bar, a product engineered for the most demanding environments. Our commitment is to provide Congolese industry with superior-grade metals that deliver unwavering performance, supporting the growth and durability of projects right here in our community and across the region.

Inconel Flat Rods Exporter in Congo , Alloy Flat Bars Stockist in Kinshasa, Inconel Flat Bar Supplier in Congo , Inconel Cold Drawn Flat Bars Distributor in Congo, Alloy Flat Rods Stockist Mbuji-Mayi Inconel Flata Bars Price in Mbuji-Mayi, Inconel Flat Bar & Rods Kisangani, Inconel Bright Flat Bars Weight Calculator in Congo, Inconel Alloy Flat Bar Supplier in Kisangani, Alloy Cold Drawn Flat Rods Exporter in Lubumbashi

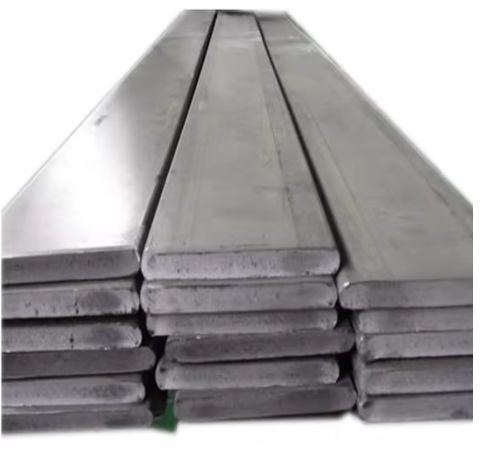

Custom-Finished Inconel Flat Bars

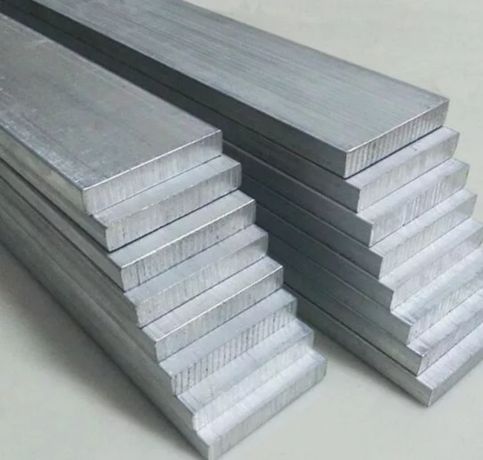

Black Inconel Alloy Flat Bars

Ground Inconel Alloy Flat Rods

What is Inconel Hex Bars?

The exceptional character of the Inconel flat bar comes from its unique composition, primarily a nickel-chromium alloy fortified with other elements like molybdenum and niobium. This blend gives it a remarkable combination of mechanical properties, including tremendous tensile strength and excellent fatigue resistance. It maintains this structural integrity even when subjected to extreme heat, offering outstanding creep resistance and retaining its hardness under conditions that would cause other metals to fail.

Inconel Polished Flat Bars Size Chart in Congo , Inconel Bright Flat Rods Exporter in Bukavu, Alloy Flat Bar Manufacturer in Mbuji-Mayi, Inconel Flat Bars Distributor in Congo , Inconel Alloy Flat Rods Dealer in Lubumbashi, Inconel Flat Bars Supplier in Congo, Inconel Flat Bars Stockist in Kisangani

Inconel Flat Bars Specifications

Size range	12 mm – 46 mm (1/2 inch- 1 ¾ inch)
Flat Bar Size Range	Thickness: 2 -100mm / Width: 10 to 500mm
Manufacturing Technique	Hot Rolled, Cold Drawn, Cold Rolled, Forged
Crack Test	Magnetic Particle Inspection (MPI)
Length	2 meters to 7.5 meters ( 8 feet to 24 feet), or Custom Length as per Requirement
Size Tolerances	h10 and h11
Chamfering	Available in 30°, 45° & 60° through fully automatic, both-end chamfering machine
Surface Finish	Cold (bright) drawn, hot rolled, centreless ground, peeled, Rough Turned, hot rolled annealed, smooth turned, Bright, slit rolled edge, Polish, Grinding, Centreless Ground & Black
Heat Treatment	Annealed, Solution Annealed
Tolerance	H8, H10, H9, H11, H12, K10, H13K9, K12 K11 or as per clients’ requirements

You Need Our Support, to Have Any Projects?

Test Certificate

Why Sadiki Metals?

Packaging

Inconel Flat Bars Chemical Composition

	Ni	Cr	Fe	Mo	Nb+Ta	C	Mn	Si	Ph	S	Al	Ti	Co
Min	Bal	20	–	8	3.15	–	–	–	–	–	–	–	–
Max	–	23	5	10	4.15	0.10	0.50	0.50	0.015	0.015	0.40	0.40	1.0

Inconel Flat Bars Mechanical Properties

0.2% Proof Stress	Tensile Strength	Elongation	Reduction of area	Hardness
MPA	MPA	%	%	HRB
Min	Min	Min	Min	Min
414	827	30	40	145

Inconel Flat Bar Sizes

Flat Size	KG’s per Metre	Standard Length (m)
10 x 3	0.24	6.0
13 x 3	0.31	6.0
13 x 5	0.46	6.0
16 x 3	0.38	6.0
16 x 5	0.64	6.0
16 x 8	1.03	6.0
20 x 3	0.48	6.0
20 x 5	0.81	6.0
20 x 6	0.97	6.0
20 x 10	1.61	6.0
25 x 3	0.60	6.0
25 x 5	1.01	6.0
25 x 6	1.21	6.0
25 x 8	1.61	6.0
25 x 10	2.01	6.0
25 x 12	2.41	6.0
32 x 3	0.77	6.0
32 x 5	1.29	6.0
32 x 6	1.55	6.0
32 x 8	2.06	6.0
32 x 10	2.58	6.0
32 x 12	3.09	6.0
40 x 3	0.97	6.0
40 x 5	1.61	6.0
40 x 6	1.93	6.0
40 x 8	2.58	6.0
40 x 10	3.22	6.0
40 x 12	3.86	6.0
40 x 16	5.15	6.0
40 x 20	6.14	6.0
50 x 3	1.21	6.0
50 x 5	2.01	6.0
50 x 6	2.41	6.0
50 x 8	3.22	6.0
50 x 10	4.02	6.0
50 x 12	4.83	6.0
50 x 16	6.44	6.0
50 x 20	8.05	6.0
50 x 25	10.1	6.0
65 x 3	1.57	6.0
65 x 5	2.62	6.0
65 x 6	3.14	6.0
65 x 8	4.18	6.0
65 x 10	5.23	6.0
65 x 12	6.28	6.0
65 x 16	8.37	6.0
65 x 20	10.5	6.0
65 x 25	13.1	6.0
75 x 5	3.02	6.0
75 x 6	3.62	6.0
75 x 8	4.83	6.0
75 x 10	6.04	6.0
75 x 12	7.24	6.0
75 x 16	9.66	6.0
75 x 20	12.1	6.0
75 x 25	15.1	6.0
75 x 40	24.1	6.0
90 x 5	3.62	6.0
90 x 6	4.35	6.0
90 x 8	5.79	6.0
90 x 10	7.24	6.0
90 x 12	8.69	6.0
100 x 5	4.02	6.0
100 x 6	4.83	6.0
100 x 8	6.44	6.0
100 x 10	8.05	6.0
100 x 12	9.66	6.0
100 x 16	12.9	6.0
100 x 20	16.1	6.0
100 x 25	20.1	6.0
100 x 50	40.2	6.0
110 x 6	5.31	6.0
110 x 8	7.08	6.0
110 x 10	8.85	6.0
110 x 12	10.6	6.0
130 x 5	5.23	6.0
130 x 6	6.28	6.0
130 x 8	8.37	6.0
130 x 10	10.5	6.0
130 x 12	12.6	6.0
130 x 16	16.7	6.0
130 x 20	20.9	6.0
130 x 25	26.2	6.0
150 x 5	6.04	6.0
150 x 6	7.24	6.0
150 x 8	9.66	6.0
150 x 10	12.1	6.0
150 x 12	14.5	6.0
150 x 16	19.3	6.0
150 x 20	24.1	6.0
150 x 25	30.1	6.0
150 x 50	60.4	6.0
180 x 5	7.24	6.0
180 x 6	8.69	6.0
180 x 10	14.5	6.0
180 x 12	17.4	6.0
180 x 16	23.2	6.0
180 x 20	29.0	6.0
180 x 25	36.2	6.0
200 x 6	9.66	6.0
200 x 8	12.9	6.0
200 x 10	16.1	6.0
200 x 12	19.3	6.0
200 x 16	25.7	6.0
200 x 20	32.2	6.0
200 x 25	40.3	6.0
250 x 6	12.1	6.0
250 x 8	16.1	6.0
250 x 10	20.1	6.0
250 x 12	24.1	6.0
250 x 16	32.2	6.0
250 x 20	40.2	6.0
250 x 25	50.3	6.0
300 x 6	14.5	6.0
300 x 8	19.3	6.0
300 x 10	24.1	6.0
300 x 12	29.0	6.0
300 x 16	38.6	6.0
300 x 20	48.3	6.0
300 x 25	60.4	6.0

Modern Equipments

Expert Engineers

Well Maintained

Efficient Factories

Inconel Flat Bars and Rods Types

Inconel Flat Rods Dealer in Lubumbashi, Inconel Flat Bars Manufacturer in Lubumbashi, Inconel Cold Drawn Flat Bar Supplier in Bukavu, Inconel Flat Bars Size Chart, Inconel Rods Price in Mbuji-Mayi, Stockist of Inconel Flat Bars in Kisangani, Weight Calculator of Flat Rods Supplier in Congo , Alloy Flat Bar Price List in Kinshasa

Frequently Asked Questions (FAQ)

Are Inconel Flat Bars Customizable?

Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@sadikimetals.com

How Do I Maintain Inconel Flat Bars?

To maintain Inconel Flat Bars, ensure proper storage in dry, cool environments to prevent oxidation. Regularly inspect for wear or damage, and clean with non-abrasive methods to preserve surface integrity.

Are Inconel Flat Bars Suitable For Cryogenic Applications?

Yes, Inconel Flat Bars are suitable for cryogenic applications. They retain their strength and resistance to brittleness at extremely low temperatures, making them ideal for use in cryogenic environments.

Inconel Flat Bars Uses

This incredible durability makes the Inconel flat bar indispensable in sectors where failure is not an option. You’ll find it forming the backbone of components in chemical processing plants, aerospace engineering, and marine applications, where it resists corrosion from saltwater. It’s also vital in power generation turbines and within the oil and gas industry, performing reliably in high-temperature and high-pressure environments. Essentially, it’s the material of choice for any application that demands long-lasting strength against immense heat and corrosive substances.

Our Products

Other Products

Other Material

If You Are Looking To Buy High Quality

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
