Nestled in the vibrant industrial landscape of Kinshasa, Congo, Sadiki Metals stands as a dedicated source for high-performance Monel forgings. We understand that true reliability is forged under pressure, which is why our commitment goes beyond mere supply to encompass expert manufacturing. Our team works closely with clients across the region, providing robust components engineered to withstand the unique challenges of demanding applications, from the heart of industrial plants to the depths of mining operations, ensuring projects are built on a foundation of local expertise and unwavering quality.
The exceptional character of Monel forgings comes from their unique nickel-copper composition, which delivers a natural strength that stands up to some of the harshest conditions. This alloy maintains remarkable toughness and excellent resistance to corrosion, particularly from saltwater, acidic environments, and caustic solutions. The very process of forging enhances these innate properties, creating a dense, uniform grain structure that results in superior mechanical integrity, high tensile strength, and excellent fatigue resistance, making it a material chosen for its proven durability.
Specifications ASTM B564 / ASME SB564
Flat bar blocks up to 27″ width and 15,000 lbs.
Cylinders and sleeves up to 50″ maximum O.D. and 65″ maximum length
Discs and hubs up to 50″ diameter and 20,000 lbs.
Rolled, hand forged or mandrel forged rings up to 84″ maximum O.D. and 40″ maximum length
Rounds, shafts and step shafts up to 144″ maximum length and 20,000 lbs.
Grades Monel 400, Monel K500
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Monel 400 | 0.30 max | 2.00 max | 0.50 max | 0.024 max | 28.00 – 34.00 | 2.50 max | 63.00 min |
| Monel K500 | 0.25 max | 1.5 max | 0.5 max | 0.010 max | 27.00 – 33.00 | 0.5 – 2 | 63.00 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Monel 400 | 8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80,000 , MPa – 550 | Psi – 35,000 , MPa – 240 | 40 % |
| Monel K500 | 8.44 g/cm3 | 1350 °C (2460 °F) | Psi – 160000 , MPa – 1100 | Psi – 115000 , MPa – 790 | 20 % |
The forging process for Monel typically takes several hours, depending on the size and complexity of the component. It involves heating, shaping, and cooling, with each stage carefully controlled to ensure quality.

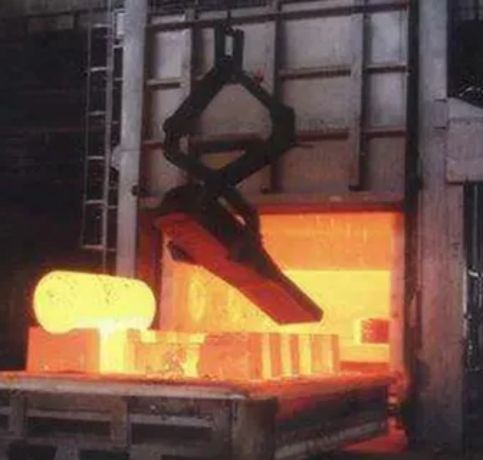

The most suitable forging techniques for Monel alloys include open-die and closed-die forging. These methods ensure precise shaping and maintain the material's strength and corrosion resistance during the process.
This combination of strength and corrosion resistance makes Monel forgings indispensable in sectors where failure is not an option. You’ll find them as critical components in marine engineering, such as propeller shafts and pump parts, and within chemical processing plants handling corrosive substances. They are equally vital in the oil and gas industry for valve trim and fittings, and in specialized aerospace applications. Essentially, wherever extreme conditions meet the need for unwavering performance, Sadiki Metals’ Monel forgings provide the resilient, long-lasting solution that keeps essential operations running smoothly.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
