Sadiki Metals, located in Kinshasa, Congo, has built a solid reputation as a reliable manufacturer and supplier of top-notch stainless steel products, particularly Stainless Steel 304H bars and rods. Known for their unwavering commitment to quality, the company prioritizes precision in their manufacturing processes, ensuring durability and adherence to international standards. With a strong focus on customer satisfaction, Sadiki Metals delivers dependable products that cater to a wide range of industrial needs. Their Stainless Steel 304H bars and rods are produced using cutting-edge metallurgical techniques, providing outstanding strength, resistance to corrosion, and excellent performance even in high-temperature environments. This makes them a go-to choice for demanding applications in construction, engineering, and manufacturing.
The composition of Stainless Steel 304H bars and rods includes iron, 18–20% chromium, 8–10% nickel, along with small amounts of carbon, manganese, and silicon. The higher carbon content compared to 304L boosts strength at elevated temperatures while still offering corrosion resistance. In terms of mechanical properties, they boast a tensile strength of about 515–750 MPa, a yield strength of around 205–310 MPa, and an elongation of 40–50%, which ensures excellent formability and weldability. Their stability at high temperatures, along with resistance to oxidation and thermal fatigue, makes them ideal for heavy-duty industrial applications where both mechanical performance and durability are essential.
| Grade | Stainless Steel 304H (UNS S30409) |
|---|---|
| Specification | ASTM A276, ASTM A479 |

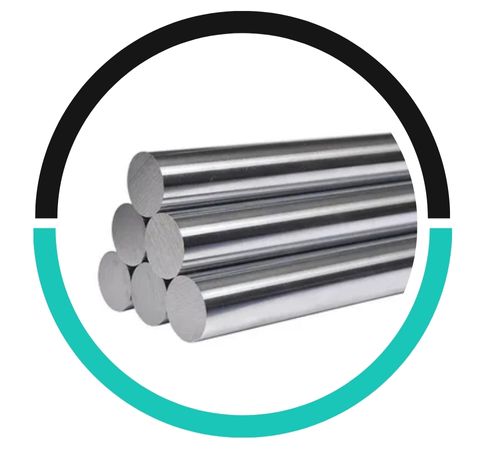

| Round bar size | Diameter: 3-~800mm |
| Hex Bar size | 2-100mm A/F |
| Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Hollow Bar | 32 OD x 16 ID to 250 OD x 200 ID |

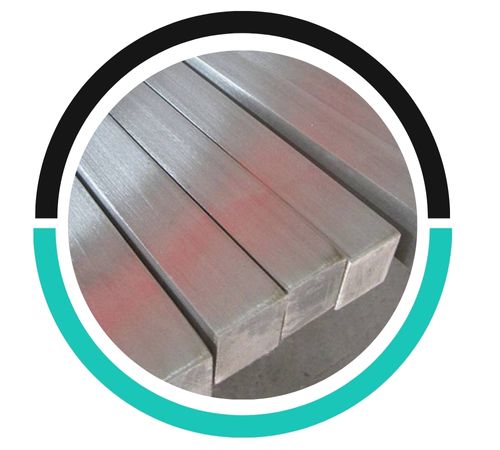

| Square bar size | 4 to 100mm |
| Section | 3.0 to 12.0mm thickness |
| Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Billet Size | 1/2″ to 495mm Diameter |
| Channel Bar | 80 x 40 to 150 x 75 mm section; 5 to 6 mm thickness |
| Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Angle bar size | 3*20*2~12*100*100 mm |
| Form | Rings, Profiles, Hollow, Flat Bar, Square, Round, Rectangle, Triangle, Rod, Half Round Bar, T-Bar, Hex (A/F), Precision Ground Bar, Channel Bar, Blocks, Round Rod, Threaded, Billet, Ingot, I/H Bar, Forging etc. |

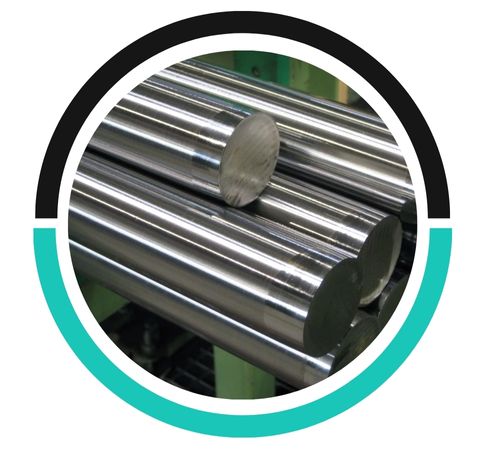

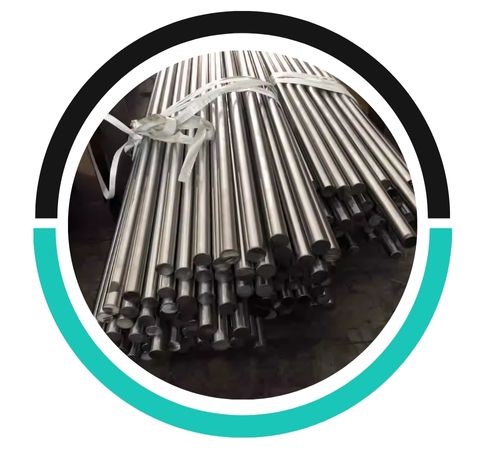

| Technique | Cold Drawn, Rod, Hot Rolled, Cold Rolled, Forged Round Bar |
| Condition | annealed, Hardened & tempered |

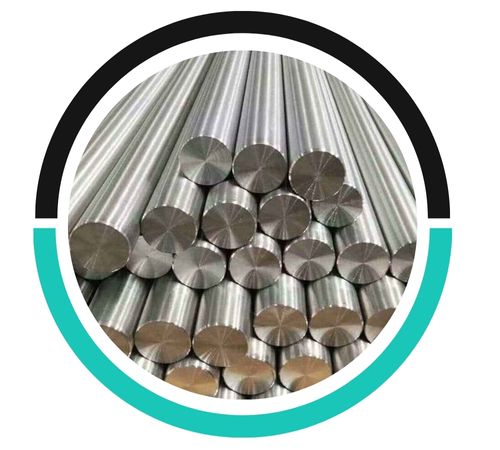

| Surface | Cold Drawn, Polished, Bright, Hot Rolled Pickled, Sand Blasting Finished,Hairline |
| Element | SS 304H |
| C | 0.10 max |
| Ni | 8.0 – 10.5 |
| P | 0.045 max. |
| Mn | 2.00 max |
| Si | 0.75 max |
| S | 0.03 max. |
| Cr | 18.0 – 20.0 |
| Element | SS 304H |
| Melting Point | 1400 ℃ |
| Density | 8 |
| Hardness (Brinell) | 201 |
| Yield Strength (0.2%Offset) | 205 |
| Tensile Strength | 515 |
| Elongation | 40 |
|
Type |
SIZES (Inches) |
ISO Tolerance |
SIZES (mm) |
|---|---|---|---|
|
Peeled and Polished |
1.50″ to 6.00″ |
h11-DIN 1013 |
40.00 to 150.00 |
|
Cold Drawn and Ground |
5/6″ to 2.50″ |
h9-h8-h11-h10 |
10.00 to 75.00 |
|
Cold Drawn and Polish |
1/8″ to 3.00″ |
h9-h8-h11-h10 |
3.00 to 75.00 |
|
Peeled and Ground |
3/4″ to 2.00″ |
h10-h9-h11 |
20.00 to 50.00 |
| STANDARD | UNS | WERKSTOFF NR. |
| SS 304H | S30409 | 1.4301 |
Stainless Steel 304H has a higher carbon content (0.04–0.10%), which enhances its strength and heat resistance, making it suitable for high-temperature applications compared to 304 and 304L.
Industries such as petrochemical, power generation, chemical processing, and construction use Stainless Steel 304H for applications like heat exchangers, boilers, pressure vessels, and structural components.
Yes, Stainless Steel 304H is designed for excellent performance in high-temperature environments, maintaining strength and corrosion resistance in conditions up to 870°C (1600°F).
Stainless Steel 304H bars and rods find extensive use in industries that demand high-temperature resistance and structural integrity. Typical applications include components for furnaces, heat exchangers, pressure vessels, and equipment for chemical processing. They are also well-suited for automotive parts, aerospace components, and systems in power generation that are subjected to high temperatures. In the realms of construction and manufacturing, 304H bars and rods are utilized for robust structural frameworks, pipelines, and machinery components. Their exceptional corrosion resistance and mechanical properties make them a perfect fit for these demanding environments.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
