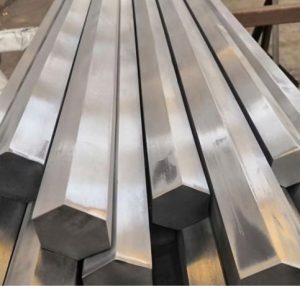

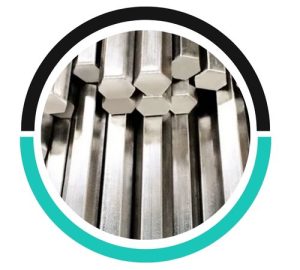

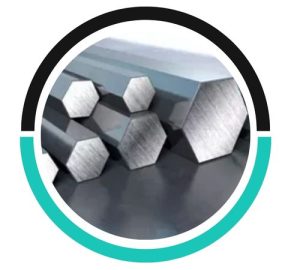

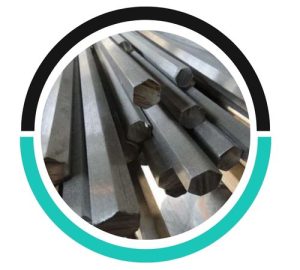

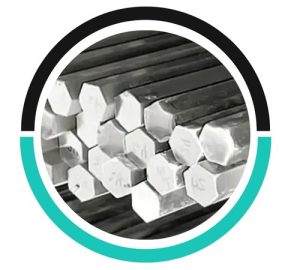

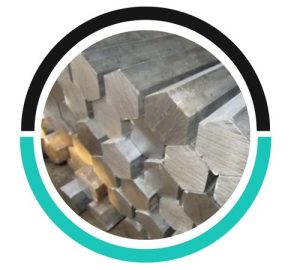

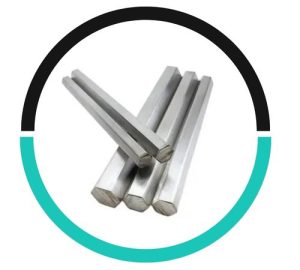

Nestled in the heart of Kinshasa, Sadiki Metals has built a strong reputation as a trusted partner for industrial and construction needs. We take pride in our role as a dedicated manufacturer and supplier, providing high-quality materials that meet the demanding challenges of modern projects. Our focus on reliability and local expertise makes us the go-to source for specialized products like the Stainless Steel 317L Hex Bar and Rod, materials chosen for their exceptional resilience in even the most aggressive environments.

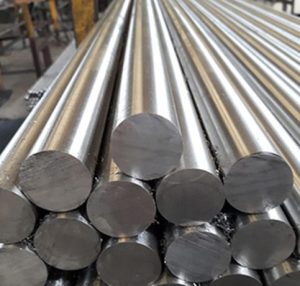

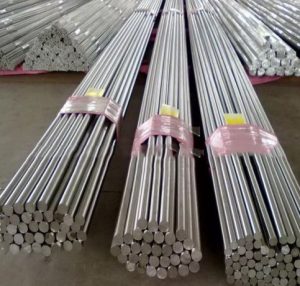

The strength of 317L lies in its sophisticated composition, which includes higher levels of chromium, nickel, and, crucially, molybdenum compared to standard grades. This specific blend gives the alloy its remarkable resistance to corrosion, particularly from chlorides and acids. The resulting mechanical properties are impressive, offering excellent tensile strength and durability. Whether you choose the hex bar for secure tooling or the round rod for machining, you’re getting a material built to maintain its integrity under significant stress and high temperatures.
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A276, A479, ASTM A493
Length : Random, Fix & Cut Length
Size : 20MM to 150MM
| Element | C | Cr | Mn | Ni | P | S | Si |
| SS 317l | 0.03 max. | 18.0 – 20.0 | 2.00 max. | 11.0 – 14.0 | 0.045 max. | 0.03 max. | 1.00 max. |
| Element | Density | Melting Range,℃ | Tensile Strength | Yield Strength | Elongation | Hardness (Brinell) |
| SS 317l | 8 | 1450 ℃ | 515 | 205 | 40 | 217 |
| HEXAGONS | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.55 | 1.79 |
| 18 | 0.69 | 2.27 |
| 20 | 0.85 | 2.80 |
| 22 | 1.03 | 3.39 |
| 25 | 1.33 | 4.38 |
| 28 | 1.67 | 5.49 |
| 30 | 1.92 | 6.30 |
| 32 | 2.19 | 7.17 |
| 36 | 2.77 | 9.07 |
| 38 | 3.08 | 10.11 |
| 40 | 3.41 | 11.20 |
| 45 | 4.32 | 14.18 |
| 50 | 5.34 | 17.50 |
| 56 | – | – |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
SS 317L Hex Bars/Rods are commonly used in chemical processing, marine environments, pharmaceuticals, and food processing due to their excellent corrosion resistance and high strength. They are ideal for handling aggressive chemicals, including sulfuric acid, bleaching solutions, and pulp liquor. In construction, they are used for structural components and fittings.
SS 317L Hex Bars/Rods typically range from 6 mm to 100 mm in diameter, with lengths up to 6 meters. Tolerances generally conform to ±0.5 mm for diameter. These dimensions and tolerances ensure precision for machining, making them ideal for applications requiring high strength, corrosion resistance, and tight fit.
The high chromium (18-20%) and molybdenum (3-4%) content in SS 317L enhances its resistance to pitting and crevice corrosion by forming a passive oxide layer that protects against chloride-induced degradation. The low carbon content further reduces the risk of stress corrosion cracking, ensuring durability in harsh chloride environments.
This unique combination of properties makes 317L an indispensable material across several key industries. You’ll find it forming the backbone of chemical processing equipment, pollution control systems, and components within pharmaceutical plants where purity is paramount. It’s also the preferred choice for architectural features in coastal areas, as it stands up beautifully to salt spray. From fasteners and valve stems to custom-machined parts, the versatility of the 317L hex bar and rod provides engineers and fabricators with a reliable solution for their most critical applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Sadiki Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Kinshasa, Congo
