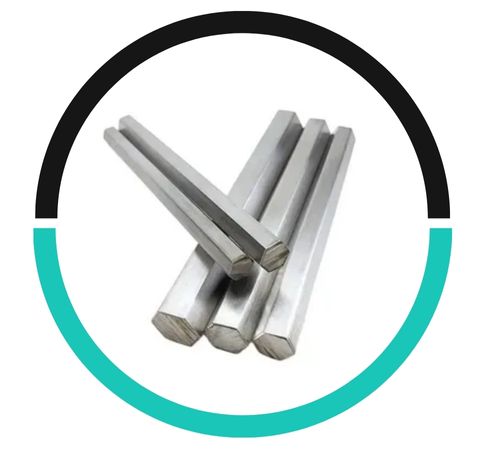

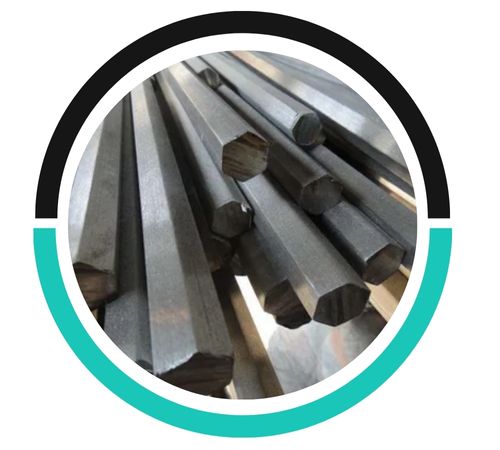

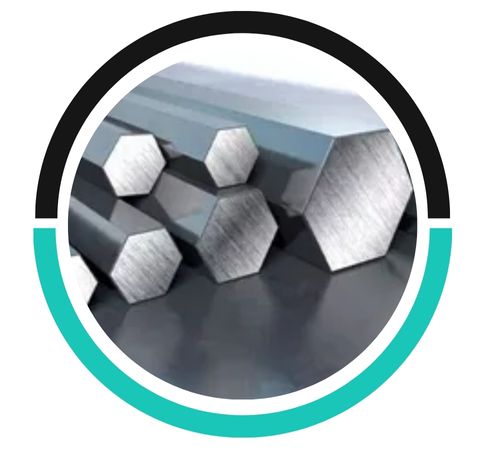

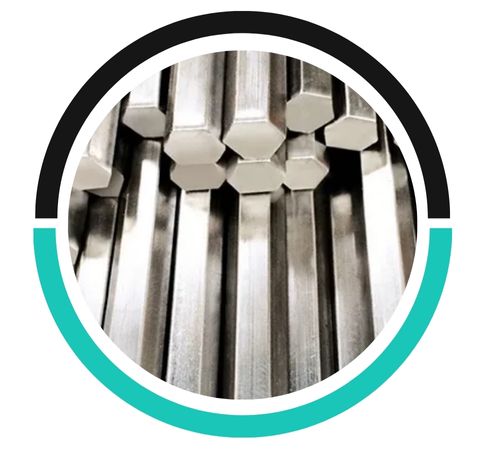

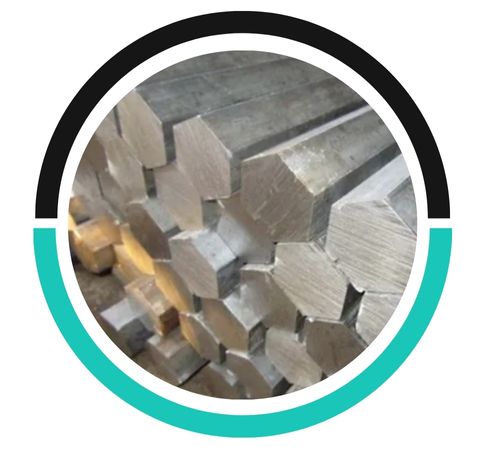

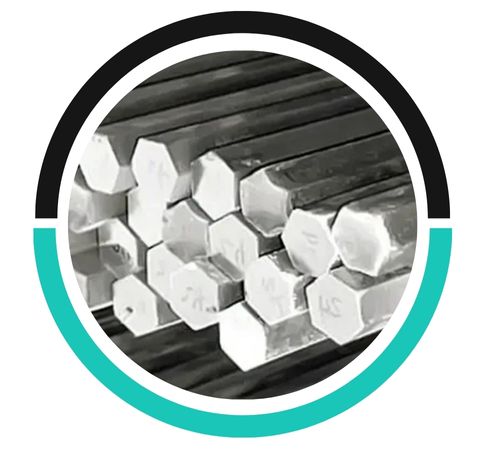

Sadiki Metals, based in Kinshasa, Congo, has earned a solid reputation as a reliable manufacturer and supplier of top-notch Stainless Steel 904L Hex Bars. Known for their precision engineering and unwavering commitment to quality, this company delivers products that adhere to international standards for strength, corrosion resistance, and durability. The Stainless Steel 904L Hex Bar is specifically crafted to excel in highly corrosive and demanding environments. With state-of-the-art production facilities and rigorous quality control measures, Sadiki Metals serves various industries, including chemical processing, marine, oil and gas, and construction, providing dependable and long-lasting stainless steel solutions to markets around the world.
The Stainless Steel 904L Hex Bar from Sadiki Metals boasts a rich composition of chromium, nickel, molybdenum, and copper, which grants it remarkable resistance to strong reducing acids and chloride-induced corrosion. This low-carbon, non-stabilized austenitic stainless steel showcases excellent mechanical properties, such as high tensile and yield strength, superior hardness, and outstanding toughness. It maintains its structural integrity even under extreme temperatures. The alloy’s well-balanced chemistry ensures great weldability, formability, and long-term durability, making it perfect for harsh chemical, marine, and industrial applications that require top-tier corrosion protection.
| Specifications | ASTM B649 / ASME SB 649 |
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Stainless Steel Round Bar | Outside Diameter in the range of 4mm to 500mm |
| Stainless Steel Bright Bar | Outside Diameter in the range of 4mm to 100mm |
| Stainless Steel Hex Bar | 18mm – 57mm (11/16″ to 2-3/4″) |
| Stainless Steel Square Bar | 18mm – 47mm (11/16″ to 1-3/4″) |
| Stainless Steel Flat Bar | 1/2″ to 10″ in thickness range of 2 mm to 150mm, Custom Size Stainless Steel Flats available |
| Range | 3.17 MM TO 350 MM DIA |
| Length | 1 to 6 Meters, Custom Cut Lengths |
| Finishing | Bright, Polish & Black |
| Form of | Hex, Wire (Coil Form), Wiremesh, Billet, Ingot, Forging Etc., |
| Other Services | Machining (CNC), Centreless Grinding (CG), Heat Treatment, Annealing, Pickling, Polish, Rolling, Forging, Cutting, Bending, Minor Fabrication, |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Cu | |
| SS 904L | Min | – | – | – | – | – | 19 | 4 | 23 | 1 |
| Max | 0.02 | 2 | 1 | 0.045 | 0.035 | 23 | 5 | 28 | 2 |
| Grade | Tensile strength (MPa) | Yield Strength 0.2% Proof(MPa) | Elongation (% in 50mm) | Hardness – Brinell |
| 904L | 490 | 220 | 36 | 70-150 |
| HEXAGONS | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.55 | 1.79 |
| 18 | 0.69 | 2.27 |
| 20 | 0.85 | 2.80 |
| 22 | 1.03 | 3.39 |
| 25 | 1.33 | 4.38 |
| 28 | 1.67 | 5.49 |
| 30 | 1.92 | 6.30 |
| 32 | 2.19 | 7.17 |
| 36 | 2.77 | 9.07 |
| 38 | 3.08 | 10.11 |
| 40 | 3.41 | 11.20 |
| 45 | 4.32 | 14.18 |
| 50 | 5.34 | 17.50 |
| 56 | – | – |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
SS 904L Hex Bar offers excellent corrosion resistance, especially against pitting, crevice, and stress corrosion cracking. Its high nickel and chromium content make it ideal for harsh environments like chemical processing, marine, and power plants. The hexagonal shape provides enhanced strength and machinability, ensuring durability and reliability in industrial applications.
SS 904L outperforms many stainless steels, such as 304 and 316, in corrosion resistance due to its higher nickel and molybdenum content. This composition enhances resistance to chloride-induced pitting and crevice corrosion, making it ideal for environments with high chloride concentrations or acidic exposure, such as chemical and marine applications.
SS 904L Hex Bar is commonly used in the chemical, petrochemical, marine, and pharmaceutical industries. It is ideal for applications such as heat exchangers, reactor vessels, pressure vessels, and piping systems, where resistance to corrosion, especially in acidic and chloride-rich environments, is critical for long-term durability and performance.
You’ll find the Stainless Steel 904L Hex Bar widely utilized in industries that operate in aggressive and corrosive settings. It’s commonly found in chemical processing equipment, heat exchangers, marine components, paper and pulp industries, oil refineries, and pharmaceutical machinery. Its impressive corrosion resistance to sulfuric, phosphoric, and acetic acids makes it ideal for handling acidic and chloride-rich solutions. Additionally, it’s employed in automotive, aerospace, and structural engineering for components that need to be strong and long-lasting. The hexagonal shape not only ensures easy machining and fitting but also provides durability, precision, and reliability in critical applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
