Sadiki Metals is a reputable manufacturer and supplier of Titanium Grade 3 Bars and Rods, proudly based in Kinshasa, Congo. This material is celebrated for its impressive strength, resistance to corrosion, and lightweight characteristics. Titanium Grade 3 is a commercially pure, unalloyed titanium that finds its place in various demanding industries. At Sadiki Metals, we focus on precision-engineered products that adhere to international standards, ensuring reliability and a long lifespan. Our Titanium Grade 3 Bars and Rods are perfect for critical applications that require a harmonious blend of strength and formability. With cutting-edge manufacturing technology and rigorous quality control, we consistently deliver top-notch performance for the industrial, marine, and chemical processing sectors.
When it comes to composition and mechanical properties, Titanium Grade 3 is primarily made up of titanium, with trace amounts of iron (up to 0.30%), oxygen (up to 0.35%), carbon (up to 0.08%), nitrogen (up to 0.05%), and hydrogen (up to 0.015%). It boasts a tensile strength of around 450 MPa and a yield strength of approximately 380 MPa, offering a good balance of ductility and moderate formability. Its remarkable corrosion resistance in both oxidizing and mildly reducing environments makes it a dependable choice for pressure vessels and aerospace structures. Additionally, Titanium Grade 3 stands out for its superior weldability and machinability compared to higher-grade alloys.
| Standards : | ASTM B348, B863 / ASME SB348, SB863 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |

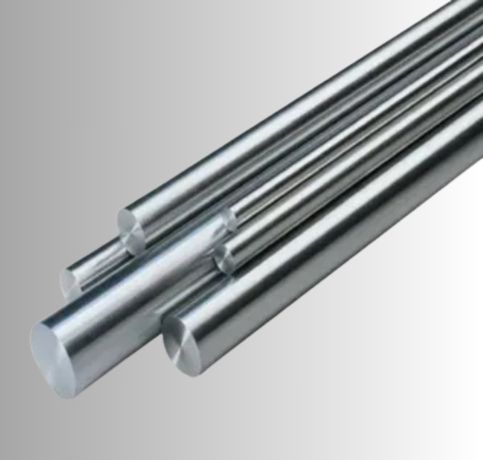

| Round bar size : | Diameter: 3-~800mm |
| Hex Bar size : | 2-100mm A/F |

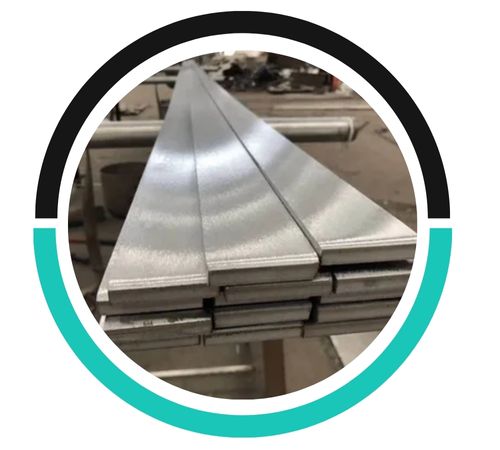

| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |

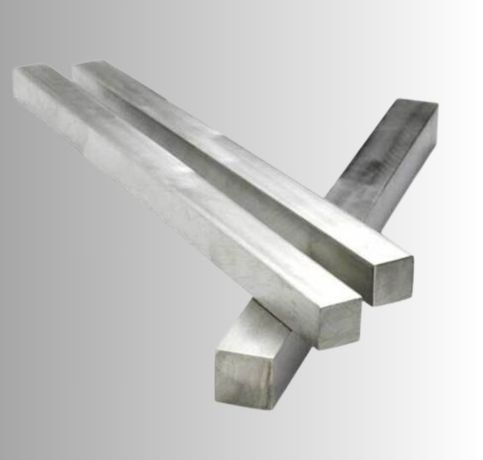

| Square bar size : | 4 to 100mm |

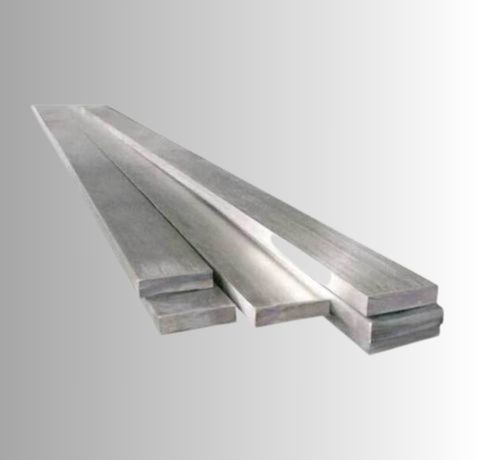

| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |

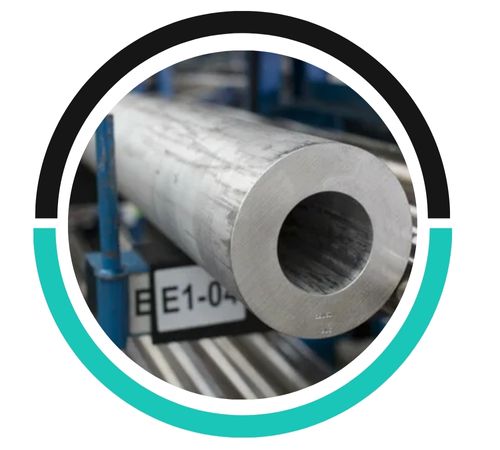

| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |

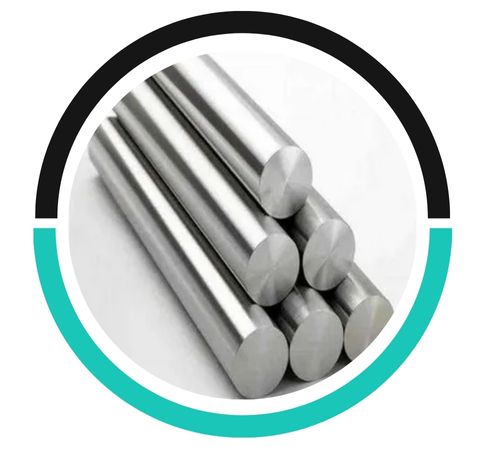

| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr 3 | 3.7055 | R50550 |
| Grade | C | N | O | H | Ti | Fe |
| Titanium Grade 3 | 0..08 max | 0.05 max | 0.35 max | 0.015 max | Bal | 0.30 max |
| Tensile Strength | Reduction of area | Elongation | Hardness |
| 450 | 30 | 18 % | 90 |
| Density | 0.163 lbs/in³ ,(4.51 g/cm³) |
| Mean Coefficient of Thermal Expansion | in/in/°F (mm/m/°C): 70- 212°F (20- 100°C) 4.78 x 10-6(8.6) |
| Thermal Conductivity | BTU-in/h-ft-°F (W/m-°K): At 70°F (21°C): 138 (19.9) |
| Modulus of Elasticity, ksi (MPa) | 15.2 x 10³ (105 x 10³) in tension |
| Melting Point | 3020°F (1660°C) |
| Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| Cold Drawn and Ground | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
| Peeled and Polished | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
| Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |
| Cold Drawn and Polish | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |
Titanium Grade 3 Round Bars Bars Standard lengths of 2000 mm up to 6000 mm. Cut to size on request (tolerance +2/-0 mm).
| 5.0 | 45.0 |
| 6.0 | 50.0 |
| 7.0 | 55.0 |
| 8.0 | 60.0 |
| 9.0 | 65.0 |
| 10.0 | 70.0 |
| 12.0 | 75.0 |
| 16.0 | 80.0 |
| 20.0 | 90.0 |
| 25.0 | 100.0 |
| 30.0 | 130.0 |
| 35.0 | 160.0 |
| 40.0 | 200.0 |
Yes, Titanium Grade 3 has excellent corrosion resistance in aggressive environments like seawater, chemicals, and high-temperature settings, making it ideal for marine and chemical processing industries.
Yes, Titanium Grade 3 has good weldability, making it suitable for various applications where welding is required.
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@sadikimetals.com
In terms of uses and applications, Titanium Grade 3 Bars and Rods are extensively utilized in the aerospace, marine, chemical, and medical fields, thanks to their excellent corrosion resistance and moderate strength. They are ideal for crafting heat exchangers, pressure vessels, aircraft frames, condenser tubing, and marine components that face saltwater exposure. In the chemical processing industry, they are essential for equipment that handles chlorides, acids, and oxidizing media. Moreover, Titanium Grade 3 is a favored choice for medical implants and instruments due to its biocompatibility. Its lightweight yet robust nature makes it a reliable option for applications where performance is critical.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
