Titanium Grade 9 Bars and Rods are celebrated for their remarkable blend of strength, resistance to corrosion, and lightweight nature, making them perfect for tough industrial and engineering tasks. Crafted to exacting standards, these bars and rods deliver exceptional mechanical stability, durability, and performance even in the harshest conditions. They boast improved formability and weldability compared to stronger titanium alloys, all while offering top-notch resistance to oxidation, seawater, and chemical damage. You’ll find Titanium Grade 9 products in various applications where reliability and weight efficiency are crucial, ensuring long-lasting performance across a range of industries.
These bars and rods are primarily made from a titanium alloy that contains about 3% aluminum and 2.5% vanadium. This unique mix results in high tensile strength, solid fatigue resistance, and impressive corrosion resistance in challenging environments. Mechanically, they strike a great balance between strength, ductility, and toughness, making them ideal for both structural and functional uses. Their outstanding resistance to stress corrosion cracking, chemical exposure, and oxidation guarantees dependable performance under thermal and mechanical stress, making them a versatile choice for high-performance engineering applications.
| Grade | GRADE 9 TITANIUM ROUND BAR |
|---|---|

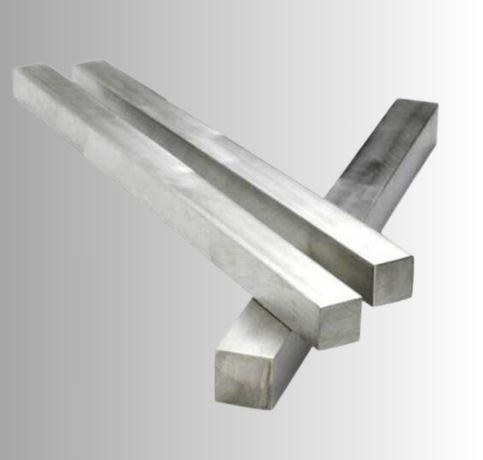

| Grade 9 Titanium Square bar size | 4 to 100mm |

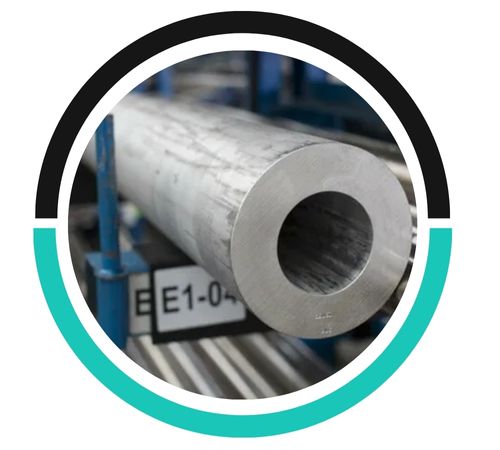

| Titanium Grade 9 Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |

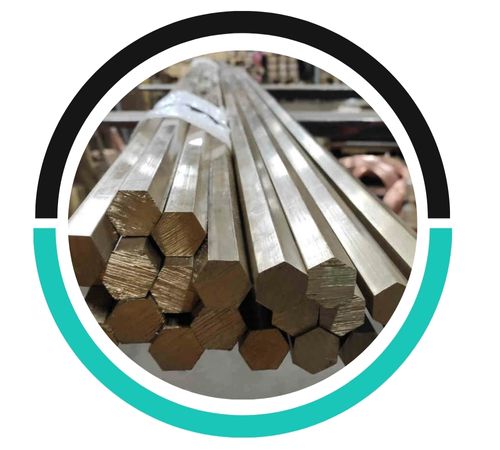

| Grade 9 Titanium Alloy Hex Bar size | 2-100mm A/F |
| Grade 9 Titanium Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Titanium Grade 9 Rectangles Size | 33 x 30mm to 295 x 1066mm |

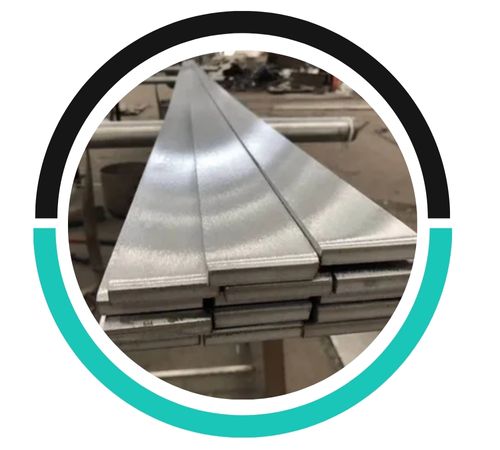

| Grade 9 Titanium Alloy Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Grade 9 Titanium Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Titanium Grade 9 Section | 3.0 to 12.0mm thickness |
| Grade 9 Titanium Alloy Round bar size | Diameter: 3-~800mm |
| Grade 9 Titanium Billet Size | 1/2″ to 495mm Diameter |
| Titanium Grade 9 Round Bar Standard Dimensions | Diameter / Height: |
| Grade 9 Titanium Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Titanium Grade 9 Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Grade 9 Titanium Alloy Technique | Grade 9 Titanium Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Grade 9 Titanium Condition | Hardened & tempered, annealed |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Form | Grade 9 Titanium Round, Rod, T-Bar, Nickel Alloy Channel Bar, Precision Ground Bar, Nickel Alloy Flat Bar, Nickel Alloy Square Bar, Nickel Alloy Blocks, Nickel Alloy Round Rod, Nickel Alloy Rings, Nickel Alloy Hollow, Nickel Alloy Triangle, Rectangle, Hex (A/F), Nickel Alloy Threaded, Half Round Bar, Profiles, Nickel Alloy Billet, Nickel Alloy Ingot, I/H Bar, Forging etc. |
| Processing | Bar cutting to 650mm |
| Our Grade 9 Titanium Round bar conforms to NACE MR0175/ISO 15156 | |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 9 | 3.7195 | R56320 |
| Grade | C | N | O | H | Ti | Fe | Al | Pd |
| Titanium Gr 9 | .08 max | .03 max | .25 max | .015 max | Bal | 0.30 max | – | .12 – .25 |
| Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 620 | 520 | 15 % |
| Physical Properties | Metric | English |
|---|---|---|
| Density | 4.48 g/cc | 0.162 lb/in³ |
| Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| Cold Drawn and Ground | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
| Peeled and Polished | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
| Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |
| Cold Drawn and Polish | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |
Grade 9 Titanium Bars Standard lengths of 2000 mm up to 6000 mm. Cut to size on request (tolerance +2/-0 mm).
| 5.0 | 45.0 |
| 6.0 | 50.0 |
| 7.0 | 55.0 |
| 8.0 | 60.0 |
| 9.0 | 65.0 |
| 10.0 | 70.0 |
| 12.0 | 75.0 |
| 16.0 | 80.0 |
| 20.0 | 90.0 |
| 25.0 | 100.0 |
| 30.0 | 130.0 |
| 35.0 | 160.0 |
| 40.0 | 200.0 |
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@sadikimetals.com
Yes, Titanium Grade 9 Bars and Rods are suitable for hygienic and sanitary applications due to their excellent corrosion resistance, non-reactivity, and ability to withstand high temperatures, ensuring safety and durability.
You’ll find Titanium Grade 9 Bars and Rods in a variety of sectors, including aerospace, marine, chemical processing, automotive, and medical industries. They’re perfect for fasteners, shafts, structural components, pressure vessels, and parts of high-performance machinery where corrosion resistance and lightweight strength are vital. In marine and chemical settings, they’re utilized for pumps, valves, piping systems, and equipment that come into contact with aggressive substances. In the medical arena, their biocompatibility makes them suitable for implants, surgical tools, and prosthetic devices. With their combination of durability and corrosion resistance, they truly stand out in the market.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
